Product Description:
Disc filter is a kind of continuous vacuum filtration equipment, it is mainly consisted with tank, main shaft, filtrate disc, distribution valve, material stripping device washing unit, drive unit, discharge unit etc.
Special structure of filter disc ensures more simple back washing process, no complex motor and drive unit required.
The filter disc is the core component of disc filter. A special grooved or ridged filter discs formed a certain dimensional channel, it can block the particle size larger than this channel to achieve the purpose of filtration. The disc filter has an excellent performance and lower consumption than traditional mechanical devices.

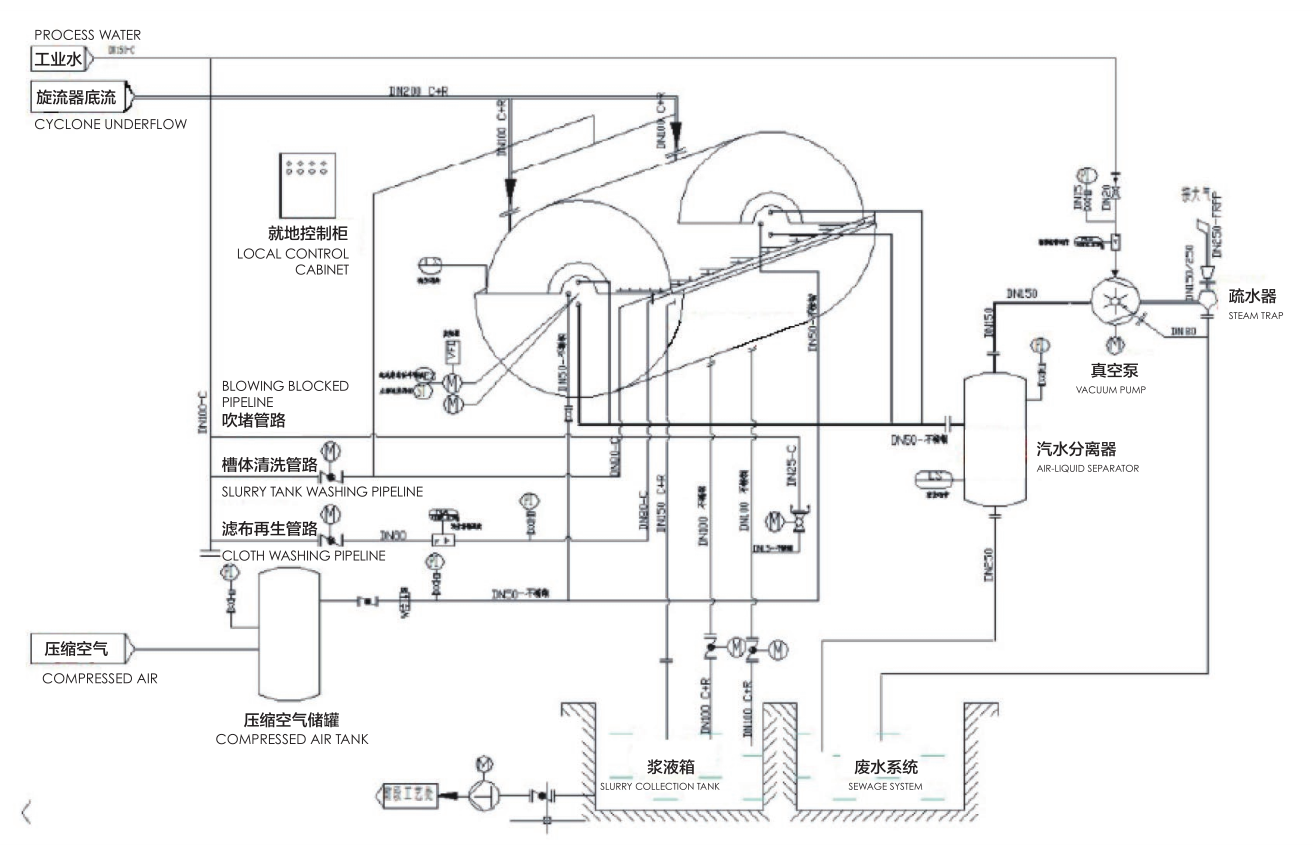

Working Principle:
| The filter disc absorbs the slurry through holes by the function of vacuum negative pressure and form piled material layer. The filtrate shall be discharged from inside of filter plate through pipes, distribution valve and discharging tank. |
| The cake absorbed on the filter disc shall be transferred to the drying area and continue dewatering under vacuum effect. |
| After the cake dewatered, it transfers to the unloading area, and unload the cake with ceramic drawknife. |
| After that, the filter disc shall be washed in backwashing area by filter liquid or tap water, which will enter the inside of filter disc from distribution valve. |
| After working for a certain time (usually 7-12h), the holes on the filter disc shall be blocked and the filtration efficiency will decrease. |
Technical Parameters:
| Installation | Vertical |
| Filtration Area | 96m2 |
| Quantity of Disc | 8 pcs |
| Power | 7.5 Kw |
| Capacity | 0.2-1.2t/h·m2 |
| Operating Pressure | Up To 100 Psi |
Applications:
- Gold Concentration
- Copper Concentration
- Iron Concentration
- Zinc Concentration
- Lead Concentration
- Lead and Zinc Tailings
- Fine Coal Concentration
- Cyanide Residue
- Zinc Oxide
Packing and Shipping:
The Disc Filter product will be packaged in a sturdy cardboard box to ensure safe transportation. Each filter will be individually wrapped in plastic to prevent scratches and damage during transit. The product box will be labeled with the product name, size, and quantity.
Shipping Details:
The Disc Filter product will be shipped via a reputable courier service to ensure fast and reliable delivery. Customers will receive a tracking number to track the progress of their shipment. Shipping fees will be calculated based on the destination and weight of the package.
FAQ:
Q: What is the brand name of this disc filter product?
A: The brand name of this disc filter product is UNIVEE.
Q: Where is this disc filter product made?
A: This disc filter product is made in China.
Q: What is the filtration efficiency of this disc filter product?
A: The filtration efficiency of this disc filter product is up to 98%.
